Case Studies & Project Portfolio

APChemi has delivered 49+ pyrolysis projects across 15+ countries, spanning tire, plastic, biomass, and mixed waste feedstocks. Below is a selection of representative projects showcasing our range of capabilities.

49+
Projects Delivered
15+
Countries
17+
Years Experience
227M+
Kg Processed
Tire Maharashtra, India

10 TPD Tire Pyrolysis & Distillation Plant

Feedstock: Whole end-of-life truck and passenger tires (shredded)
Capacity: 10 tonnes/day
Products: Distilled diesel fraction, light naphtha, recovered carbon black (rCB), steel wire

Integrated on-site PUREMAX fractional distillation unit producing diesel-specification fuel directly, eliminating third-party oil processing. Achieved 45% oil yield with desulfurized diesel fraction meeting IS 1460 specifications.

Biomass Netherlands

20 TPD Biomass-to-Biochar Plant for CDR

Feedstock: Forestry residues (wood chips, bark) and clean wood waste
Capacity: 20 tonnes/day
Products: Puro.earth-certified biochar, bio-oil, syngas (self-use for process heat)

Achieved Puro.earth carbon removal certification and ISCC Plus sustainability certification. Biochar with >80% fixed carbon sold into European voluntary carbon markets, with syngas providing energy self-sufficiency.

Plastic Southeast Asia

5 TPD Plastic-to-Oil Pyrolysis Plant

Feedstock: Post-consumer mixed polyolefins (HDPE, LDPE, PP) and polystyrene
Capacity: 5 tonnes/day
Products: Pyrolysis oil (naphtha-range) for petrochemical feedstock

PYROMAX reactor achieved 75-80% oil yield on polyolefin-rich feedstock, with consistent quality suitable for steam cracker feedstock. Product oil sold to regional petrochemical offtaker under long-term supply agreement.

Tire Middle East

30 TPD Continuous Tire Pyrolysis Facility

Feedstock: Legacy stockpiled tire waste (passenger and truck tires)
Capacity: 30 tonnes/day (continuous operation)
Products: Pyrolysis oil, recovered carbon black (rCB), steel wire

Engineered for extreme ambient temperatures (50 degrees C+) with enhanced cooling systems and heat-rated instrumentation. Fully automated with SCADA-based remote monitoring, processing a government-contracted legacy tire stockpile.

Biomass India

15 TPD Biomass Pyrolysis for Steel Industry

Feedstock: Coconut shell and palm kernel shell (low-ash biomass)
Capacity: 15 tonnes/day
Products: Industrial-grade biochar (>85% fixed carbon), bio-oil

Biochar produced to specification as pulverized coal injection (PCI) replacement for steel blast furnaces. Fixed carbon consistently above 85% with ash below 5%, qualifying as a coal-to-biochar decarbonization pathway for heavy industry.

Plastic Europe

8 TPD Plastic Pyrolysis with ISCC Plus Certification

Feedstock: Post-industrial plastic waste, LDPE/PP packaging film
Capacity: 8 tonnes/day
Products: ISCC Plus-certified pyrolysis oil (naphtha fraction)

One of APChemi's 3+ ISCC Plus-certified plants. Full mass-balance chain-of-custody documentation enabled certified oil to be sold as chemical recycling feedstock to a major European petrochemical company at premium pricing.

Mixed Waste East Africa

25 TPD Mixed Waste Pyrolysis Plant

Feedstock: Refuse-derived fuel (RDF) from municipal solid waste
Capacity: 25 tonnes/day
Products: Pyrolysis oil, char for construction materials, recovered metals

Engineered for highly variable feedstock composition typical of developing-market municipal waste. Integrated pre-processing line with shredding, ferrous/non-ferrous metals separation, and rotary drying to condition heterogeneous RDF to within reactor specifications.

Oil Processing India

Pyrolysis Oil Purification & Distillation Facility

Feedstock: Crude tire and plastic pyrolysis oil
Capacity: 15,000 litres/day (5M+ litres/year)
Products: Light naphtha, desulfurized diesel fraction, heavy fuel oil, PUROIL-grade purified oil

APChemi's own PUREMAX fractional distillation facility, commissioned in 2019, processes crude pyrolysis oil into specification-grade fuel products. Serves dual purpose as a commercial production unit and R&D platform for oil upgrading research across tire, plastic, and biomass-derived oils.

Biomass South Asia

Biomass Gasification Pilot Plant

Feedstock: Rice husk and agricultural straw residues
Capacity: 3 tonnes/day (pilot scale)
Products: Producer gas for thermal application, biochar (35-40% yield from rice husk)

Pilot-scale gasification plant tested at APChemi's R&D facility demonstrating dual-product approach: clean syngas for industrial heating and high-value rice husk biochar with 35-40% yield for soil amendment and carbon credit applications.

These Are Just a Selection

APChemi has completed 49+ projects spanning diverse feedstocks, capacities, and geographies. Many projects involve confidential commercial arrangements. Contact us to discuss projects relevant to your specific requirements — we can share applicable reference details under NDA.

Discuss Your Project

Industries & Feedstocks We Serve

APChemi's project experience spans the full range of pyrolysis applications.

Tire Recycling

End-of-life tire processing producing pyrolysis oil, recovered carbon black, and steel wire. Plants from 5-50 TPD.

Learn more →

Plastic Recycling

Mixed plastic waste conversion to pyrolysis oil for chemical recycling. ISCC Plus-certified operations.

Learn more →

Biomass & Biochar

Forestry residues and agricultural waste to biochar for carbon removal, soil amendment, and industrial use.

Learn more →

Oil Purification

Fractional distillation of crude pyrolysis oil into specification-grade fuel and chemical products.

Learn more →

From Our Project Portfolio

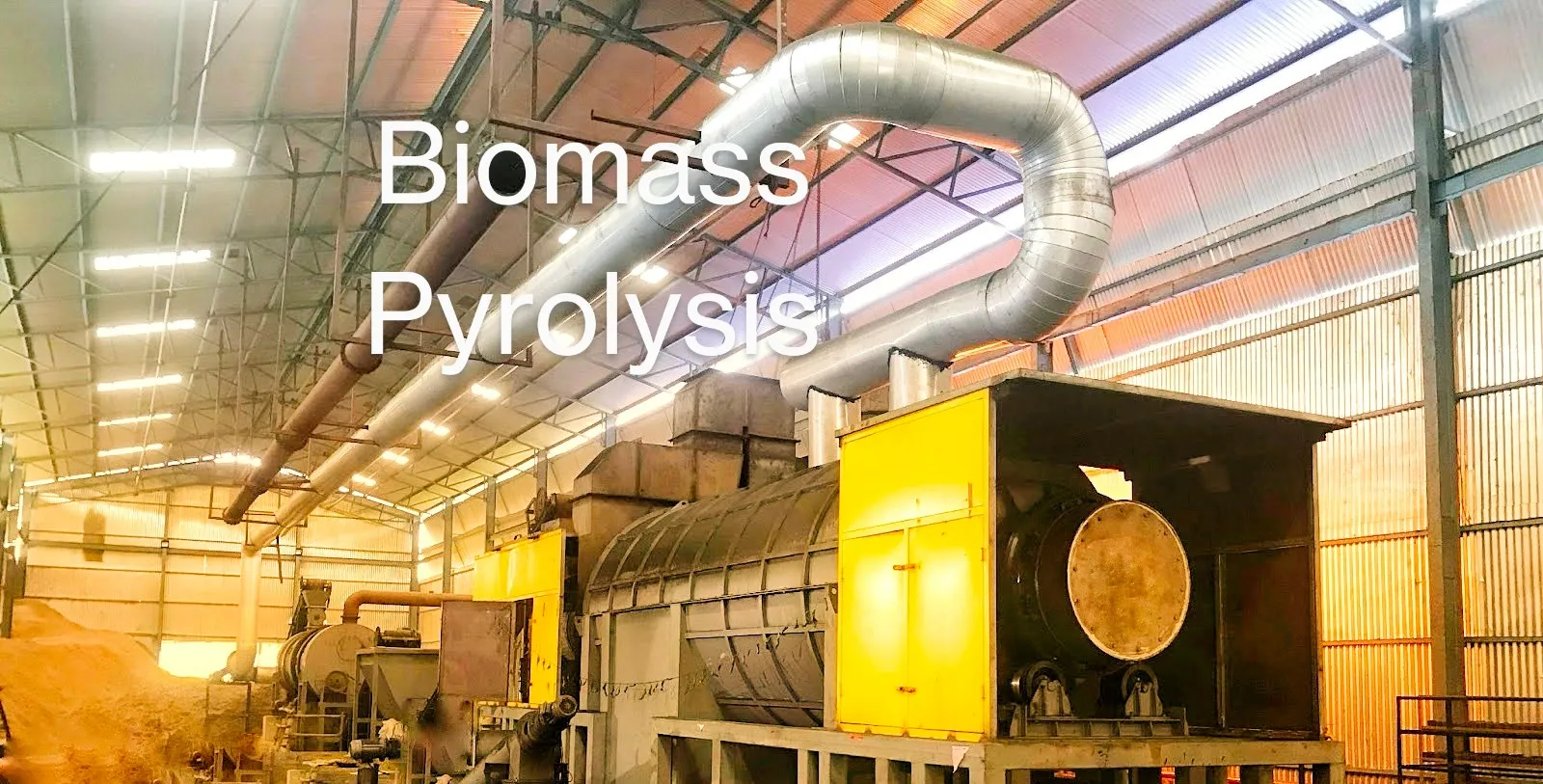

Commercial biomass pyrolysis plant designed by APChemi

Biomass Pyrolysis Plant

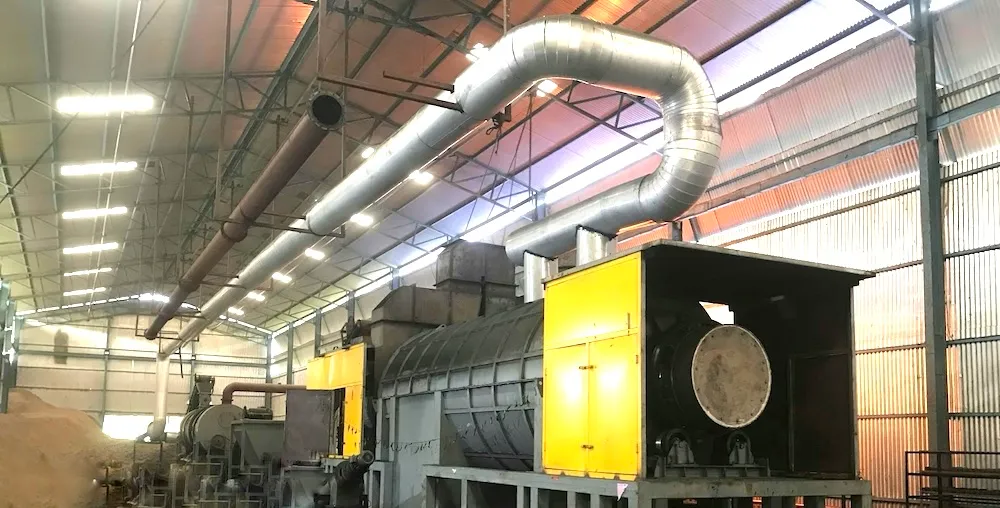

Continuous pyrolysis plant for plastic waste processing

Continuous Pyrolysis Plant

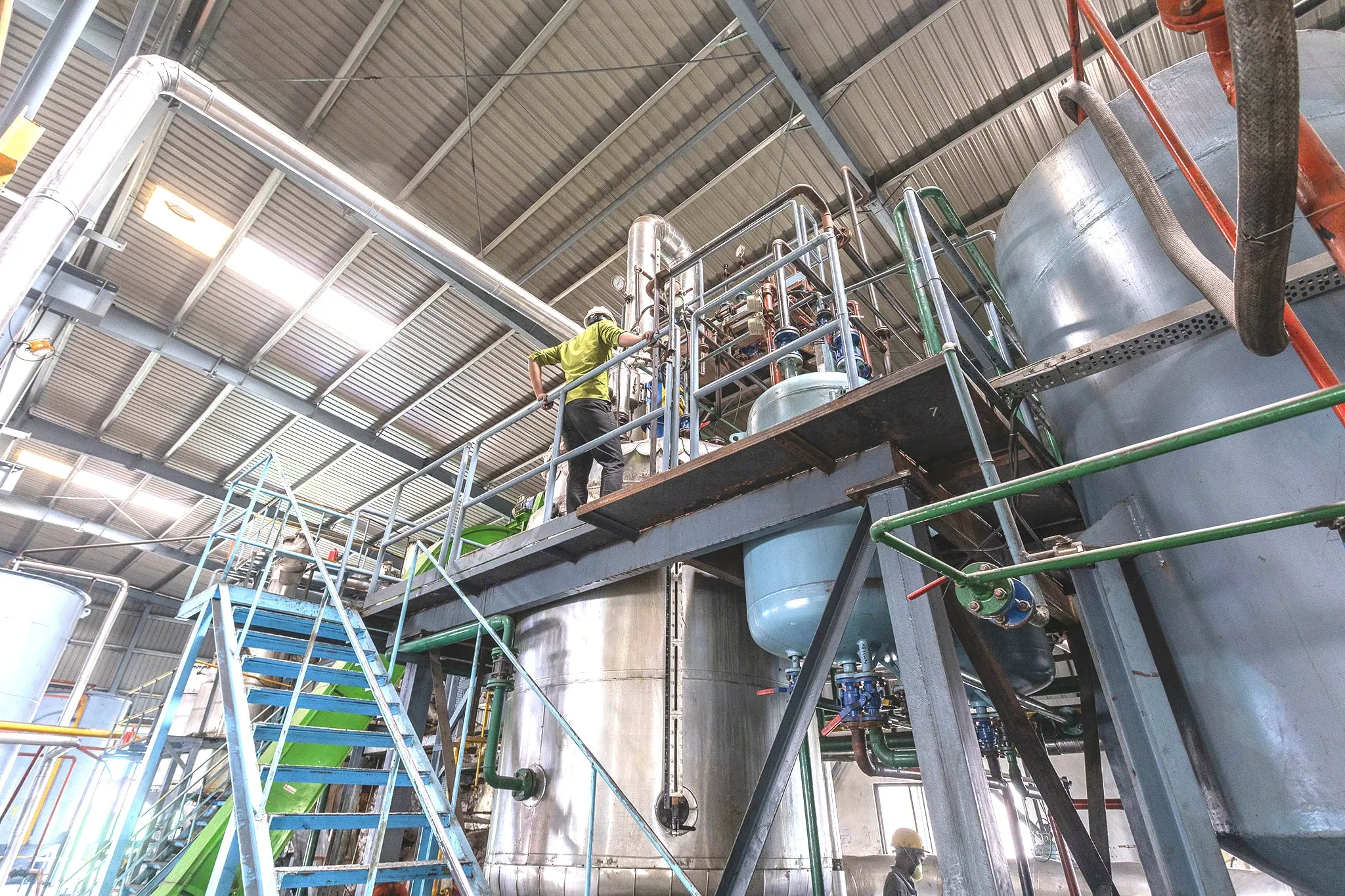

Pyrolysis oil distillation and purification plant

Oil Distillation Plant

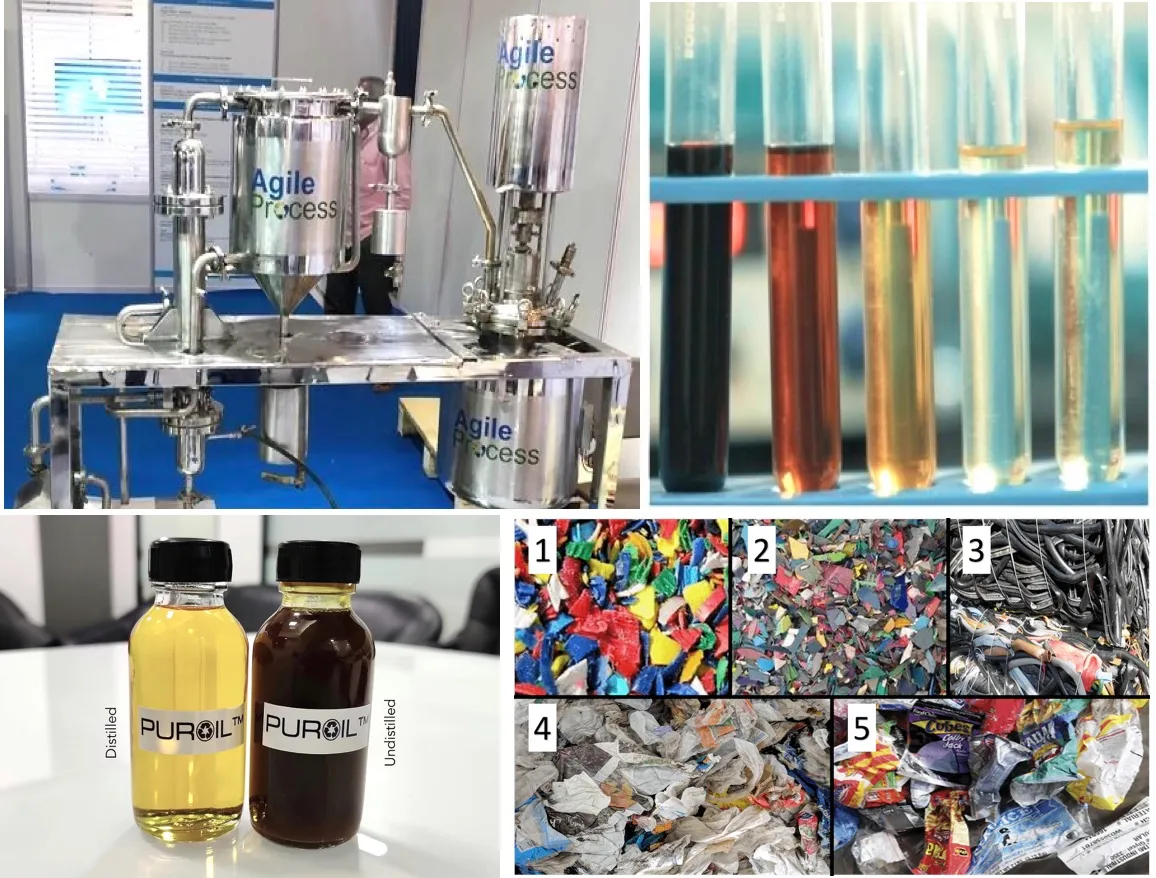

APChemi R&D pilot pyrolysis plant for feedstock testing

R&D Pilot Plant

Engineering a 50TPD biochar production plant

50 TPD Biochar Plant

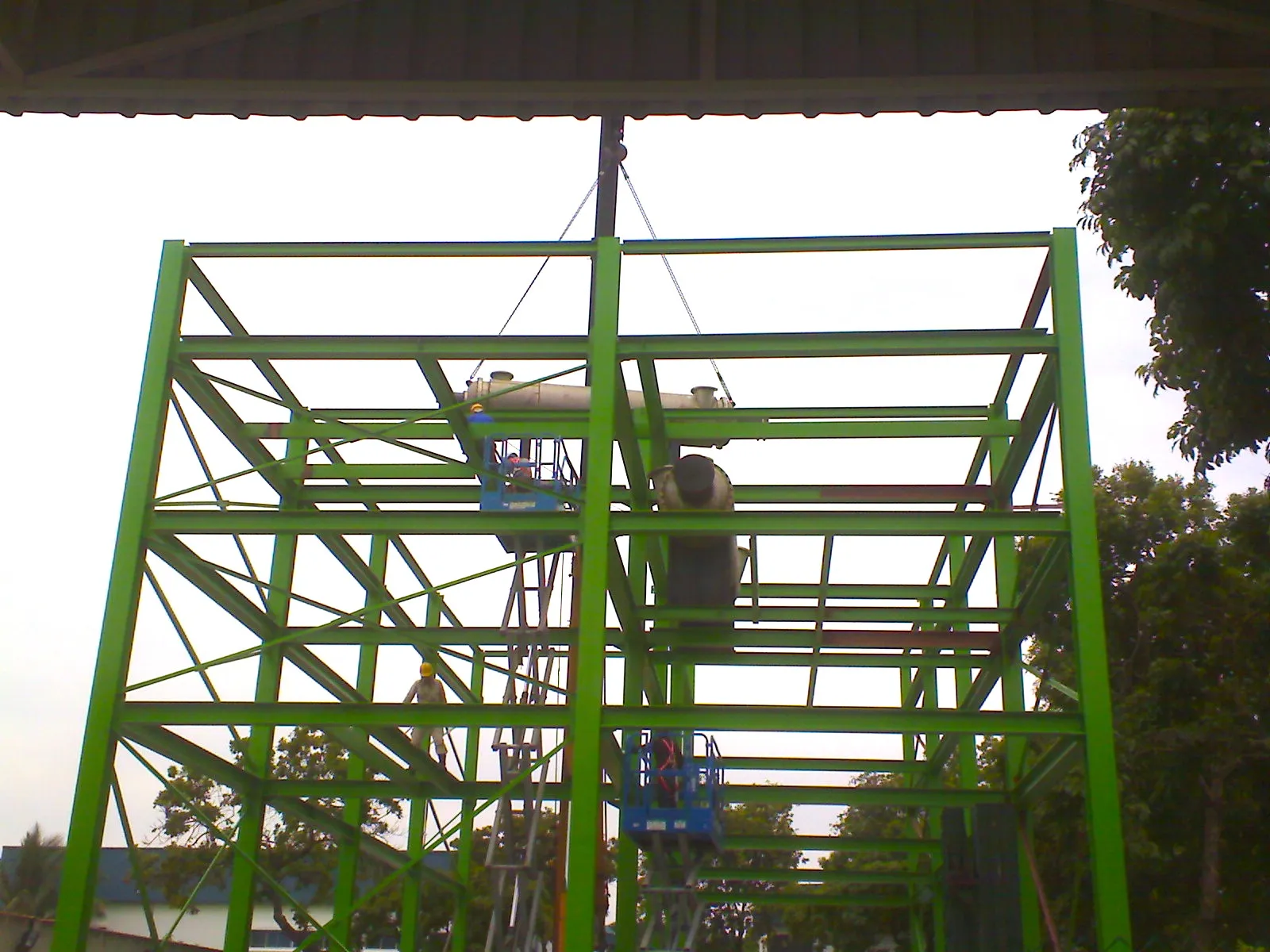

Pyrolysis plant construction and installation in progress

Plant Construction
